Description

pfsense / Opnsense 2.5GbE, 5-Port Firewall Appliance in India — NFW6412

Looking for reliable hardware purpose-built for pfsense / Opnsense?
The Namek NFW6412 is a silent, low-power 5-port 2.5GbE firewall appliance that’s optimized for
pfsense / Opnsense deployments in Indian SMBs, branch offices, and home labs.

• 5× 2.5GbE Intel® NICs ideal for pfsense / Opnsense multi-WAN, VLANs, and IDS/IPS
• Fanless, ~10W typical power for 24×7 uptime
• Intel® Quad-Core J6412 CPU with AES-NI for fast VPN on pfsense / Opnsense
• Ships with 32GB mSATA (OS) and is expandable up to 2TB storage & 32GB RAM

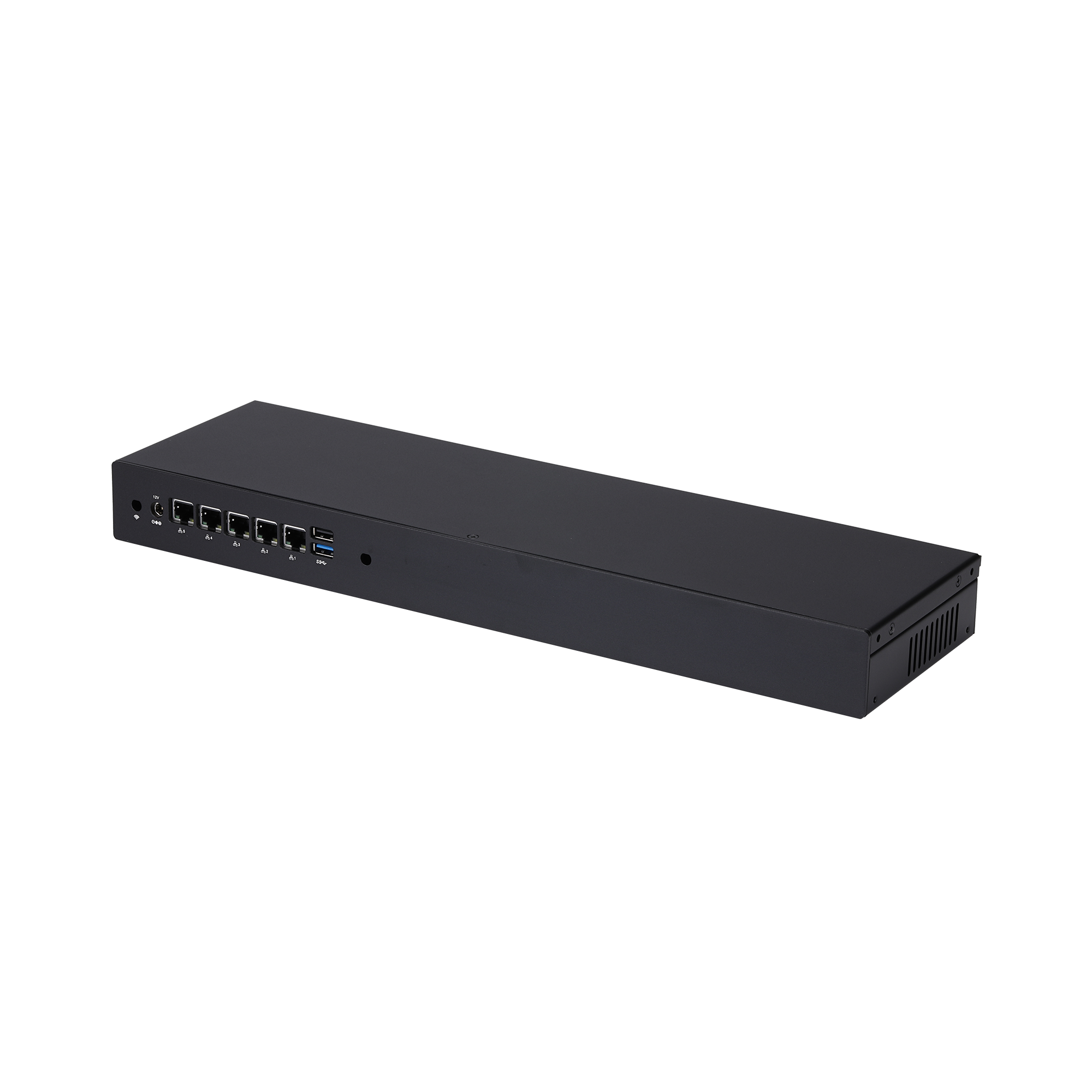

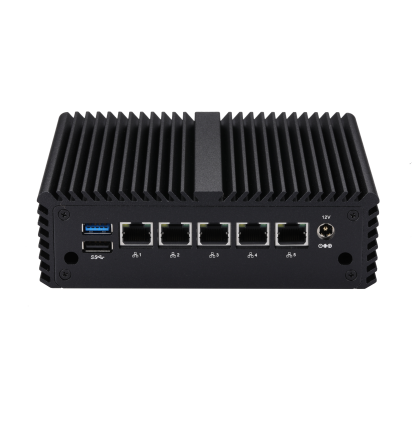

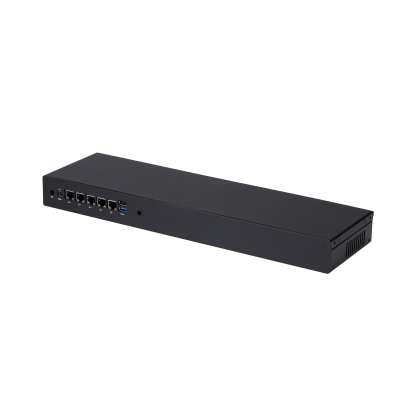

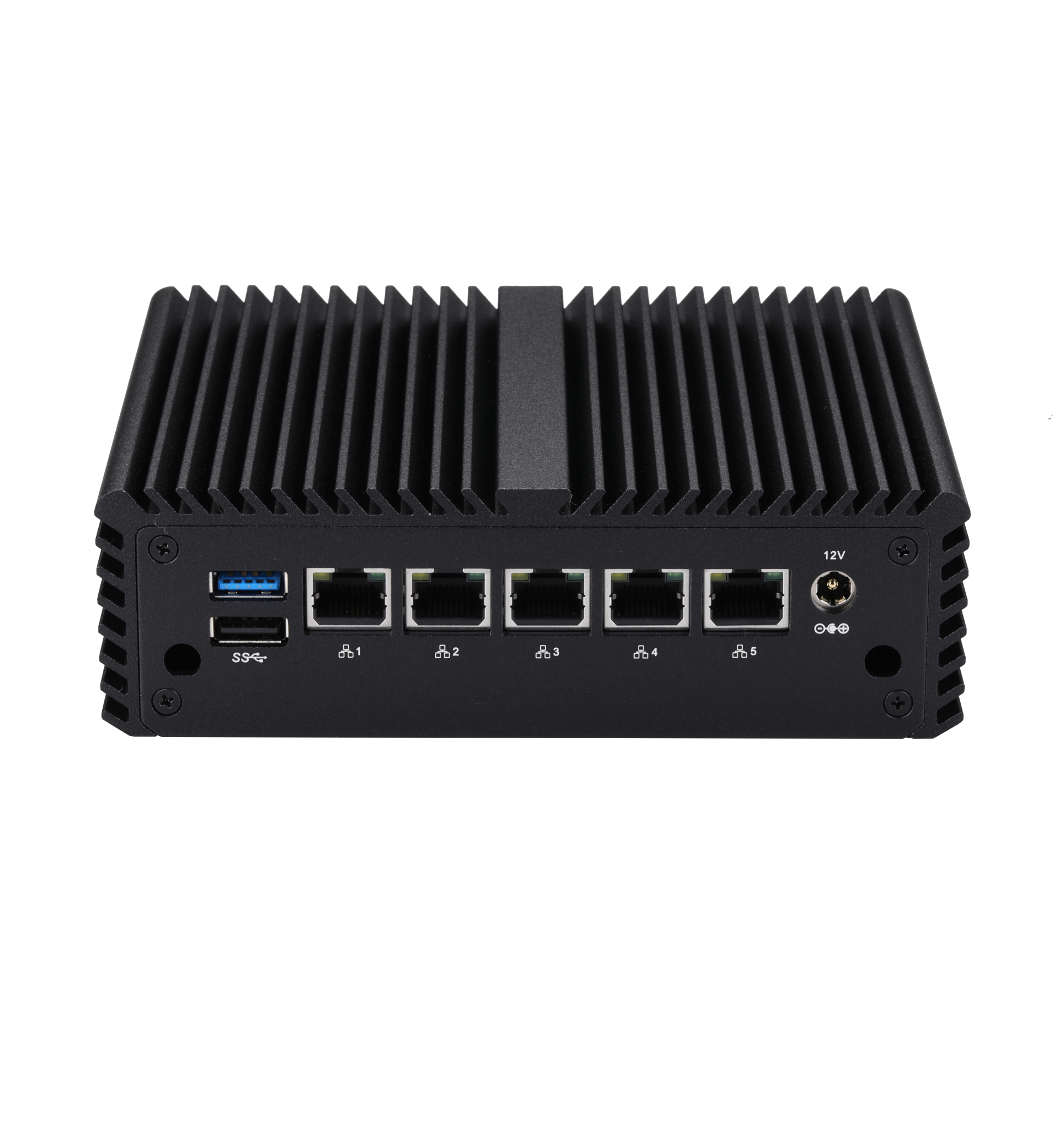

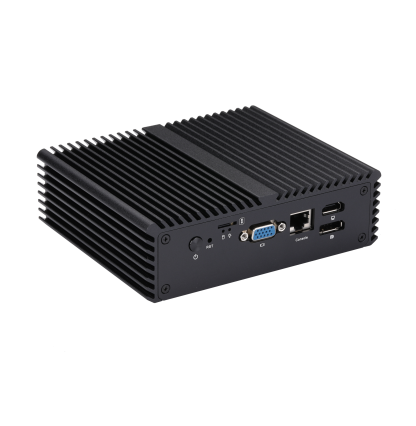

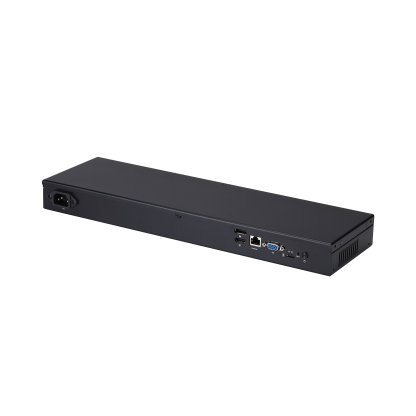

• Available in both 1U rackmount and mini-PC form factors

Why choose the NFW6412 for pfsense / Opnsense?

• Throughput headroom for policy routing, QoS, and VPN
• Compact footprint; silent, fanless cooling
• High-speed DDR4 RAM, expandable up to 32GB
• Pre-installed SSD for pfsense / Opnsense OS

Technical Specifications

• CPU: Intel® Quad-Core J6412
• Memory: 8GB DDR4 (expandable to 32GB)
• Networking: 5× 2.5GbE Intel® NICs
• Storage: 32GB mSATA SSD (OS) + up to 2TB optional
• Video: 1× VGA, 1× HDMI, 1× DP
• Power: 12V DC, ~10W typical
• Form factors: Mini-PC or 1U rackmount

pfsense / Opnsense Features on NFW6412

• Stateful firewall & NAT (port forwarding for servers, CCTV, remote access)
• Multi-WAN with failover & load balancing
• VPN (site-to-site and remote access with AES-NI acceleration)
• Reporting (RRD & real-time traffic graphs)
• Dynamic DNS support (No-IP, DynDNS, etc.)
• Captive portal for guest Wi-Fi
• Community add-ons: Snort/Suricata, Squid/SquidGuard

Warranty & Support

The NFW6412 firewall appliance for pfsense / Opnsense includes a
1-year hardware warranty. Technical support for installation/configuration is
available separately. In case of failure within the warranty period, send the unit back; after
inspection, a replacement will be dispatched.

Why Namek Technologies?

• Over a decade in open-source firewall & storage deployments
• 500+ pfsense / Opnsense rollouts for SMBs to enterprises
• Focused on durability, stability, and support for Indian SMEs

FAQs on pfsense / Opnsense with NFW6412

Q: Can I use this appliance for both pfsense / Opnsense?
A: Yes, the NFW6412 is fully compatible with both pfsense / Opnsense and comes pre-tested.

Q: Does it support VPN with high throughput?
A: Absolutely. With Intel AES-NI hardware acceleration, site-to-site and remote-access VPNs on
pfsense / Opnsense run efficiently.

Q: What is the delivery time?
A: Delivery time is approximately 15 working days.

Q: Does this include technical support for installation/configuration?
A: No. Technical support is not included and is billed separately. Please see the
pfsense / Opnsense technical support page.
