Description

pfsense / Opnsense 10G 4x 10G SFP+ 5x 2.5GbE, 8-Core Firewall Appliance in India — NFW3758R

Need serious throughput for pfsense / Opnsense with fiber-ready connectivity?
The Namek NFW3758R is an 8-core Denverton-class firewall built for high-bandwidth
edge deployments. With 4× 10G SFP+ and 5× 2.5GbE Intel® ports,
it’s a compact powerhouse for multi-WAN, IDS/IPS, and VPN at scale.

• 8-core Intel® Denverton (C3758R), 2.4 GHz, 16 MB cache, 26W TDP
• Networking: 4× 10G SFP+ and 5× 2.5GbE Intel® NICs (total 9 ports)
• Optimized for pfsense / Opnsense high-throughput deployments
• Ships pre-installed with 16GB RAM and 250GB SSD
• Silent, low-power design for 24×7 uptime
• Supports advanced features: VLANs, QoS, multi-WAN, VPN, IDS/IPS

Why choose the NFW3758R for pfsense / Opnsense?

• 10G fiber backbone (4× SFP+) + 5× 2.5GbE for flexible WAN/LAN/VLAN topologies
• 8 cores for excellent per-core and aggregate throughput
• Ideal for multi-Gig ISP links, heavy VPN, and IDS/IPS without bottlenecks
• Compact, reliable, and purpose-built for continuous operation

Technical Specifications

• CPU: Intel® Denverton C3758R (8c/8t, 2.4 GHz, 16 MB cache)
• Memory: 16GB DDR4 (pre-installed; upgradable to 64GB)

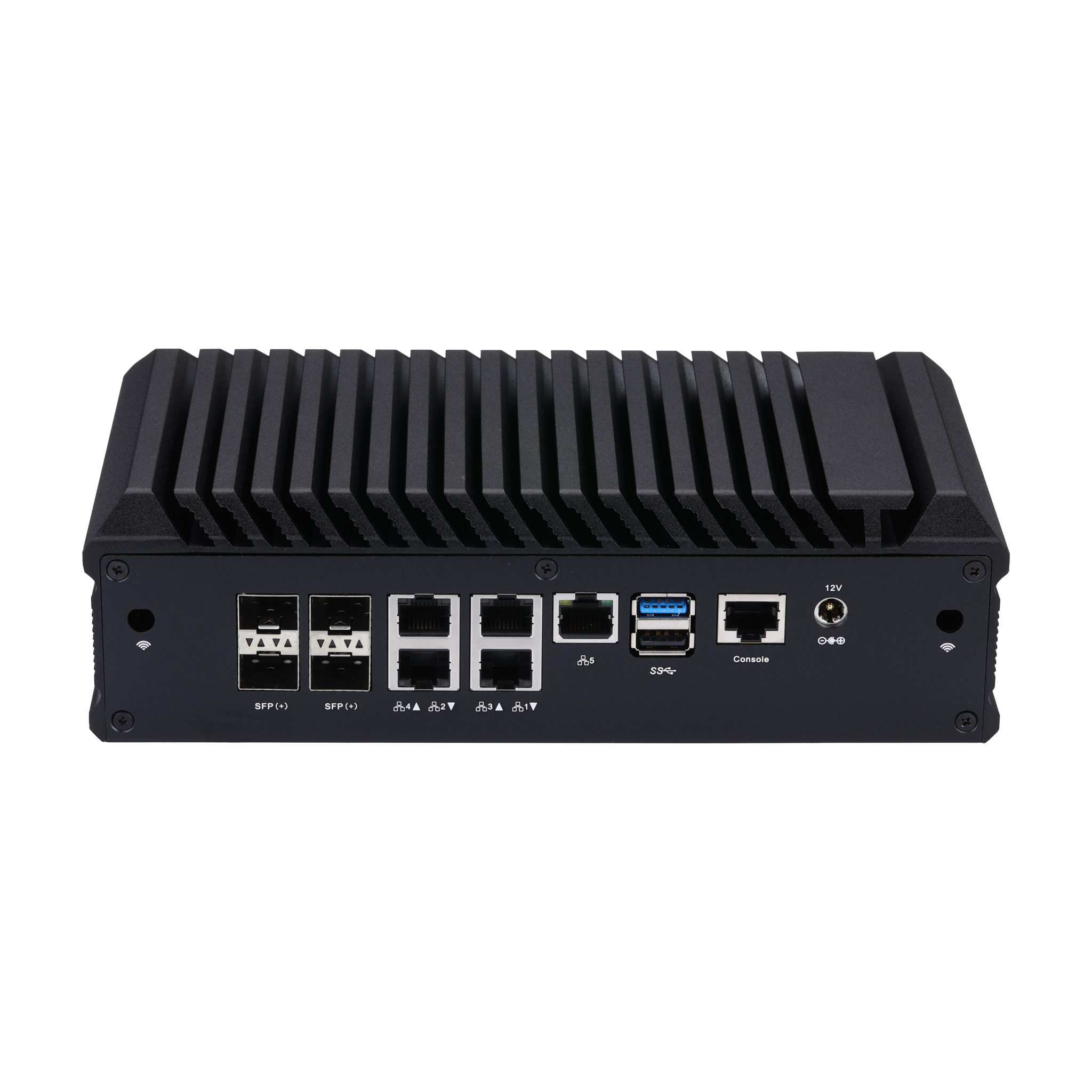

• Networking: 4× 10G SFP+, 5× 2.5GbE Intel® NICs
• Storage: 250GB SSD (OS) + additional storage options
• Video: VGA + HDMI (for initial setup)
• Power: ~25W typical

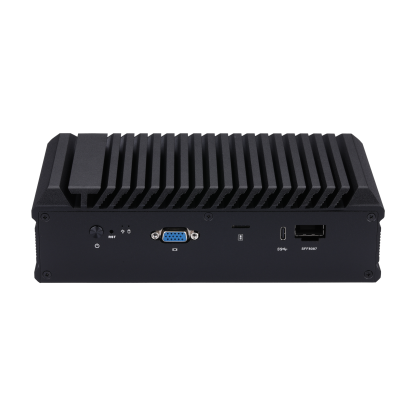

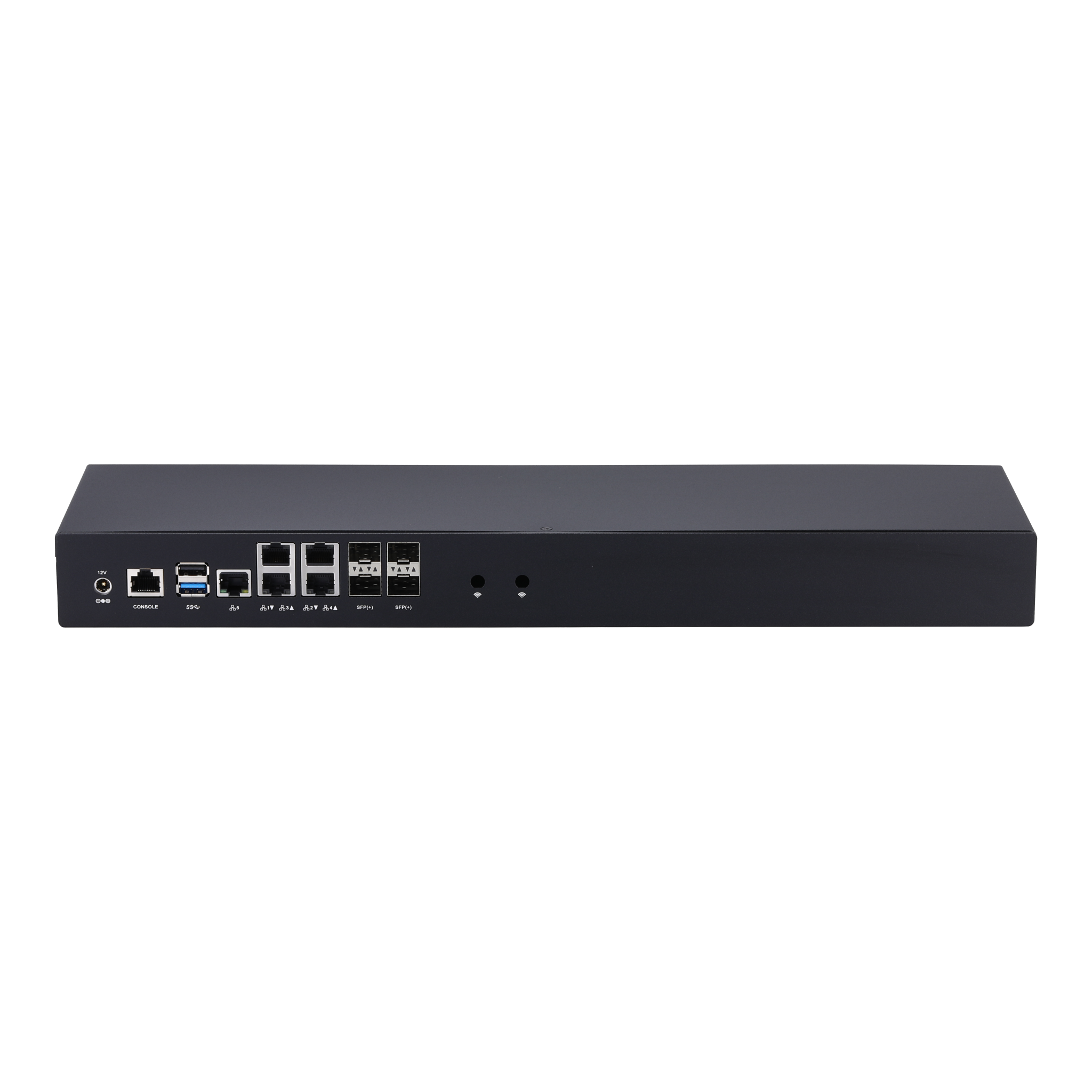

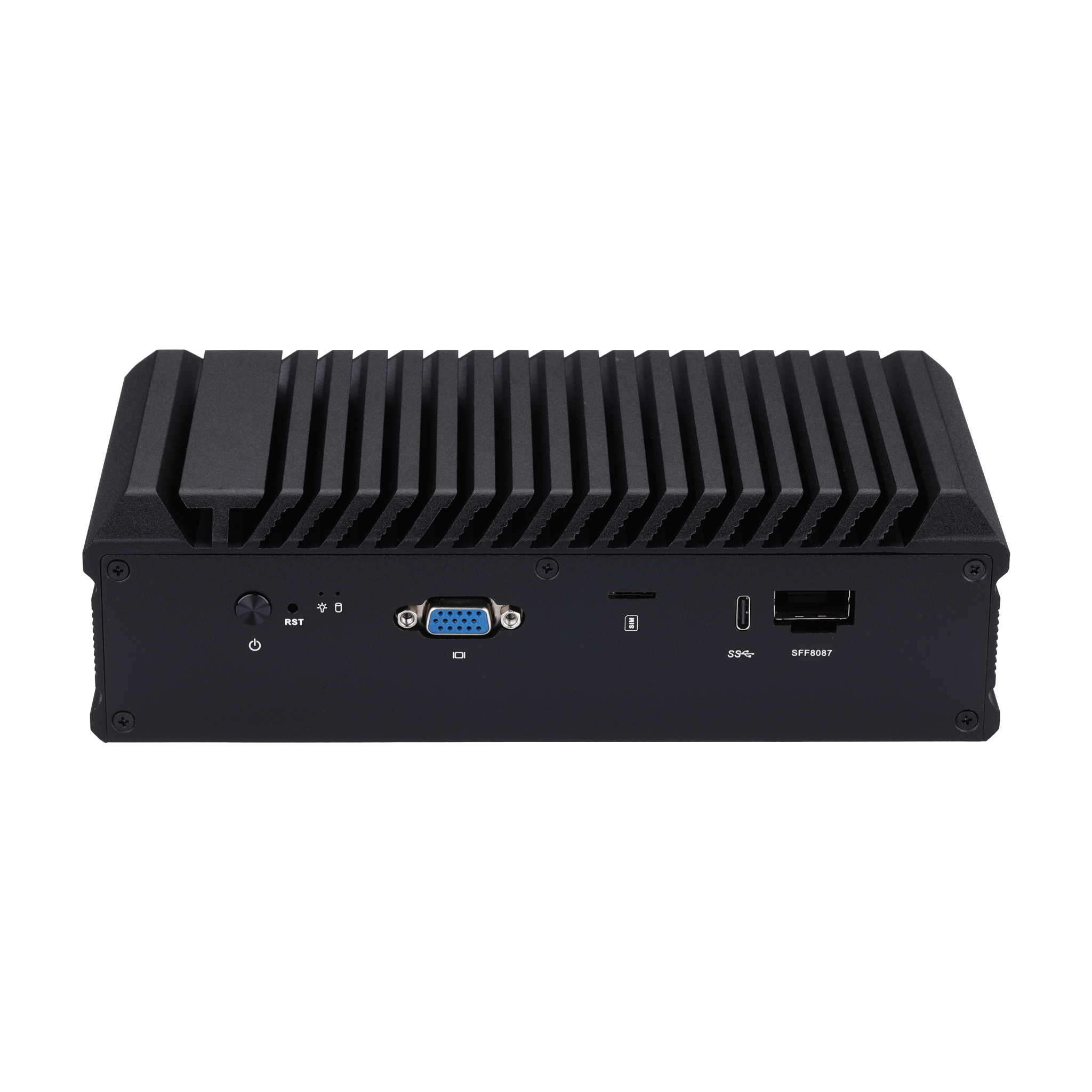

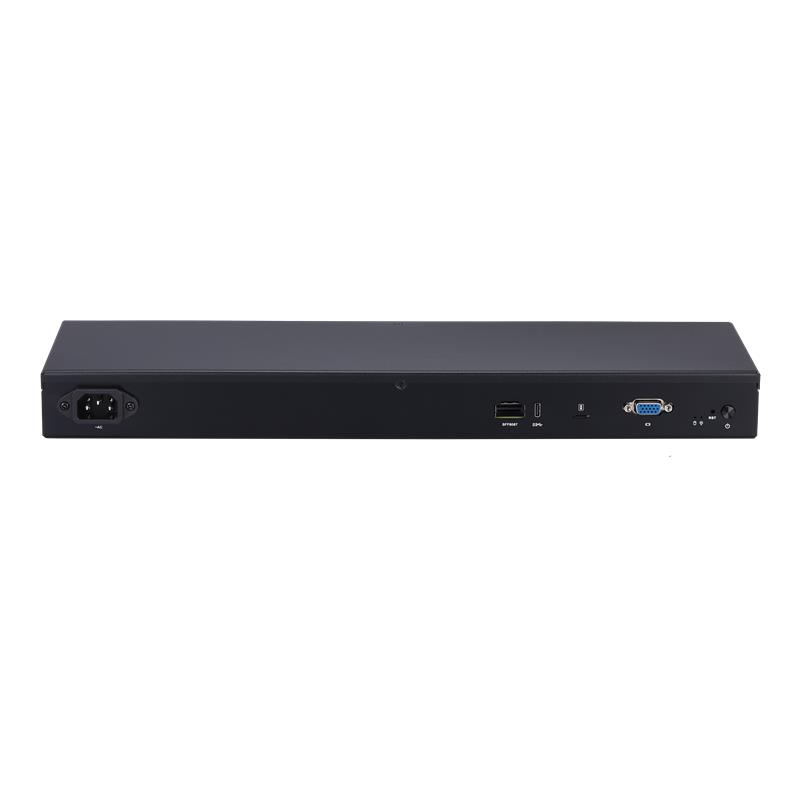

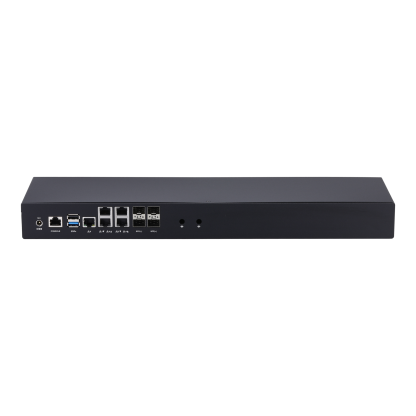

• Form factors: Mini-PC (SFF) or 1U rackmount

pfsense / Opnsense Features on NFW3758R

• Stateful firewall & NAT with multi-Gig throughput
• Multi-WAN with failover & load balancing
• VPN acceleration with Intel® AES-NI (site-to-site & remote access)
• Enterprise IDS/IPS (Suricata/Snort) at higher rulesets without choking
• RRD/real-time traffic graphs, NetFlow/traffic analysis capable
• Captive portal & advanced QoS for shaping and prioritization

Warranty & Support

The NFW3758R firewall appliance for pfsense / Opnsense includes a
1-year hardware warranty. Technical support for installation/configuration is billed separately.
In case of failure within warranty, return the unit for inspection; a replacement will be dispatched after verification.

Why Namek Technologies?

• Over a decade of open-source firewall & storage deployments
• 500+ pfsense / Opnsense rollouts for SMBs and enterprises
• Focus on durability, stability, and support for Indian SMEs

FAQs on pfsense / Opnsense with NFW3758R

Q: Can I use this appliance for both pfsense / Opnsense?
A: Yes, the NFW3758R is fully compatible with both pfsense / Opnsense and comes pre-tested.

Q: Does it support VPN with high throughput?
A: Absolutely. With Intel AES-NI hardware acceleration, site-to-site and remote-access VPNs on
pfsense / Opnsense run efficiently.

Q: What is the delivery time?
A: Delivery time is approximately 15 working days.

Q: Does this include technical support for installation/configuration?
A: No. Technical support is not included and is billed separately. Please see the
pfsense / Opnsense technical support page.
