Namek CN1 – FreeNAS 6 Bay Enterprise Network Attached Storage (NAS) Hardware

Rated 5.00 out of 5 based on 3 customer ratings
(3 customer reviews)

 105,817 210,188

Clear
SKU: namek_CN1 Category: Tag:

Description

Namek Technologies brings you the power of FreeNAS at an affordable price.
All India Shipping!

Namek CN1 Specifications:

ModelNamek CN1 6 Bay NAS

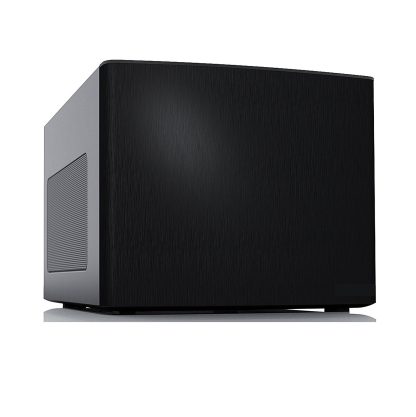

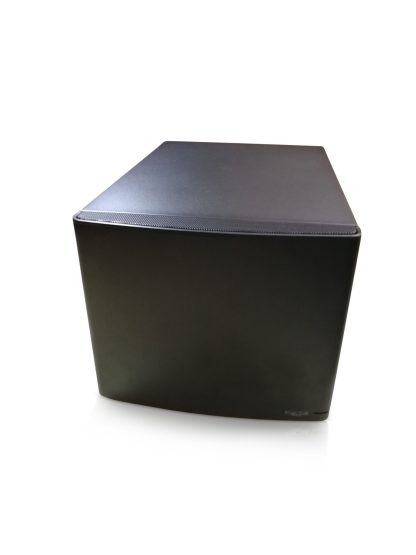

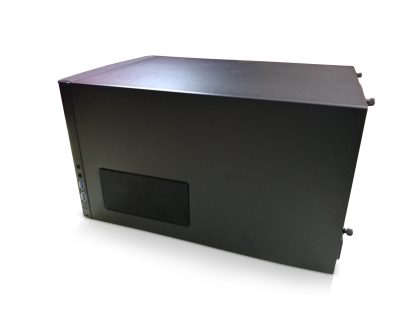

Case6-Bay Enclosure with soft mounted hard drives and anti-vibration pads
Multiple vents with dust filters for very high cooling performance
Maximum Storage CapacityUp to 36TB (6 X 6TB)
MemoryLatest 16GB DDR4 2400 Mhz High speed memory. Expandable upto 32GB (16GB x 2 DIMMs)
CPUIntel i3 7th Generation 7100 3.90 Ghz, 51W TDP
RAID LevelRAID-Z1 (RAID-5), RAID-Z2 (RAID-6), ZFS Mirror (RAID-10), ZFS Stripe
RAID EngineZFS
Network2 x Intel Gigabit Ethernet Port, Expandable upto 6 Via PCIe Slot
Hard Drive Trays6 x SATA 3.5” Drive Bays with easy thumb screw access
Boot Device16GB USB Flash Drive
Power SupplyCorsair High Efficiency (85%) 550W Power supply with Additional Y Cables for 6 HDDs
Power Frequency50/60 Hz, Single Phase
User Control InterfaceWeb Browser, SSH and Remote Hardware Management
Package Dimension (in.)18.0 x 11.0 x 13.0
Weight (lb)10 Kg Approx (without drives)
CertificationsCE, FCC, UL, RoHS
TestingContinuous 3 Days Burn-In Testing To Ensure All Hardware Components Are Defect Free
Limited Warranty1 Year Hardware warranty
 Technical Support1 Year Technical support

Namek CN1 Unique Features:

  • Compact, Modular Case
  • Filtered air intakes ensure a dust-free environment for internal components
  • Three Silent hydraulic bearing fans for maximum cooling
  • Thumb screws for easy hard drive / parts replacement
  • Easily available parts used to ensure quick replacement in case of unexpected failures
  • 7th Gen Intel i3 processor with DDR4 high speed memory.

Warranty and technical support:
– 1 year warranty on hardware
– 1 year basic technical support included

Basic technical support includes:
All Freenas information and “How To” is available online on official FreeNAS Documentation.
However, some customers that are new to FreeNAS, we provide 1 year basic technical support free of charge.
This includes:
– Basic installation – Networking, Storage
– Setting up network shares – CIFS, NFS
– 1 user account
– Setting up RAID level of your choice
– ZFS snapshots
– Remote assistance for HDD replacement in case of failure

Assistance for advanced features like file permissions, iSCSi, Plugins, AD integration is billed separately.

Shipping time:
Without Hard Drives – 2 days after cleared payment
With Hard Drives – 5 days after cleared payment (additional time for procurement and testing)

Contact us for any questions or doubts. Pickup is also available at Pune Location.

Additional information

Weight10 kg
Capacity

None, 8TB (2TB x 4), 12TB (2TB x 6), 16TB (4TB x 4), 24TB (4TB x 6)

RAM

16GB, 32GB

3 reviews for Namek CN1 – FreeNAS 6 Bay Enterprise Network Attached Storage (NAS) Hardware

  1. Rated 5 out of 5

    Victor D’souza

    I would like to thank the tech support team for going above and beyond their committed scope. Helped us with mounting iSCSI for our vmware cluster, and NFS for our linux clients for backups purposes. System was shipped pre-configured as per our requirements and was almost plug and play.

  2. Rated 5 out of 5

    Sameer Narvekar

    Setting up was easy, plug and play. Was surprised initially that the FreeNAS OS was on a usb drive! but upon further research on freenas forums and wiki I found that it is the recommended way to go. Hardware is good quality with lots of fans and dust filters. Did not buy it with hard drives as we already had drives from our previous NAS which we replaced.

  3. Rated 5 out of 5

    Rahul Patil

    – Decent price for high-end hardware.
    – We were looking for an enterprise NAS with iSCSi for our Vmware cluster. Getting Good throughput with very low CPU usage. CIFS shares on a single port gets us over 90 MB/s of transfer speed in windows 10.
    – Support was friendly, device was plug and play but we needed help to mount the iSCSI storage.
    – Shipping charges were high but we were told that it was due to insurance cost on the high value item.
    – Procurement turn around time was around 6 days

    Thank you.
